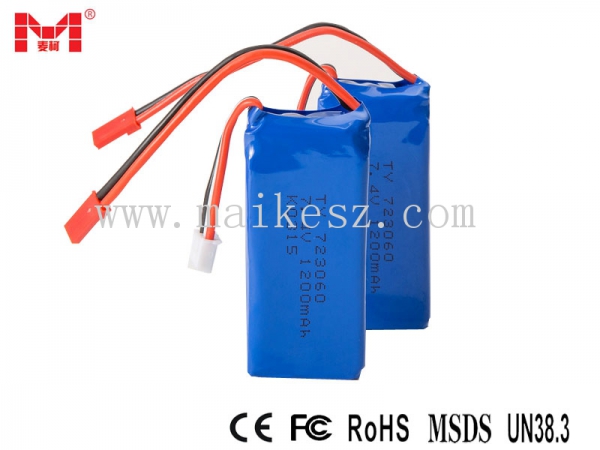

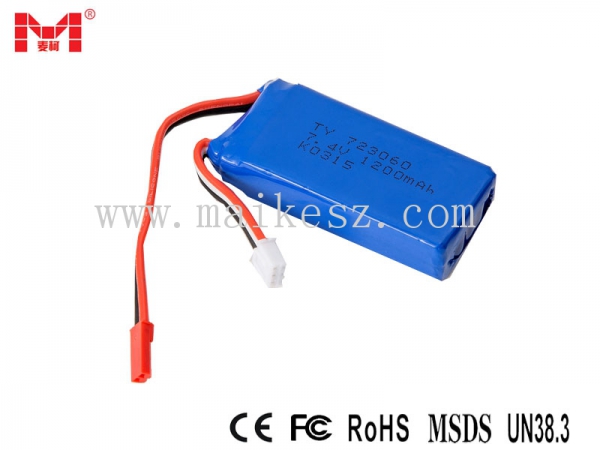

Cell type： 723060PL 3.7V 1200mAh
Configuration： 723060PL 2S1P
Voltage and capacity： 7.4V 1.2Ah
Main protection function： Overcharge, overdischarge, overcurrent, short circuit, and temperature control protection, etc.
Application Fields:
(1) Portable equipments: one Wheel unicycle,self balance scooter, POS terminal, Handset, Portable printer, Palmtop data terminal,E-sprayer.
(2)Medical instruments: Ecg monitoring instrument, B ultrasound, Breathing machine.
(3)Industrial instruments: Flaw detector, optical fiber fusion splicer, optical power meter, Construction engineering, Civil bridge, Road surface inspection, Outdoor geological exploration, Water and air quality test, Mobile information communication, etc.
(4)CE(Consumer electronics)：PDA, MID electric tools, E-bike, Emergency light source.
|
Sequence number |
Items |
Parameters |
|
|
1 |
Brand |
MAIKE（MK） |
|
|
2 |
Product Name |
Li-Ion battery |
|
|
3 |
Configuration |
2S1P |
|
|
4 |
Normal voltage |
7.4V |
|
|
5 |
Normal capacity |
1.2Ah【customizable】 |
|
|
6 |
Continuous Working current |
【 customizable 】 |
|
|
7 |
Max. current |
【 customizable 】 |
|
|
8 |
Discharge cut-off voltage |
6V |
|
|
9 |
Charge cut-off voltage |
8.4V |
|
|
10 |
Charge current |
≤2A |
|
|
11 |
Charge temp. |
0 — 45℃ |
|
|
12 |
Discharge temp. |
-20 — 60℃ |
|
|
13 |
Main protection function |
Overcharge, overdischarge, overcurrent, short circuit, and temperature control protection, etc. |
|
|
14 |
Storage temp. |
Within one month |
-20 — 55℃ |
|
Within three months |
-20 — 45℃ |
||
|
Within one year |
0 — 20℃ |
||
|
15 |
Size |
Height |
65mm |
|
Length |
30mm |
||
|
Width |
16mm |
||
|
16 |
Weight |
Reference sample |
|
Warning:
Don’t dismantle or refit battery!
Don’t hit or break battery!
Don’t use the battery contact with water!
Don’t weld metal objects directly on the battery!
Don’t put the battery into the fire, avoid high temperature!
Stop using the battery if found abnormal phenomena such as leaking, deforming, heating and so on!
Don’t short-circuit the battery!
